XS4 Eco Lock

The Salto XS4 Eco Lock is a smart electronic locker lock designed to offer all the advantages of smart access to individual lockers and cabinets combined with rapid, effortless installation. Its integrated features, designed to deliver unparalleled flexibility, reliability, and ease of use, provide enhanced security and keyless access.

Engineered using cutting-edge, sustainable technology and fully integrated with Salto’s smart access ecosystem, users can open and close lockers securely simply by holding an authorised smart key over the lock button. The solution can be configured for both traditional access credentials and modern mobile access, depending on your needs.

XS4 Eco Lock

Features

  • Ergonomic design oriented to the user experience, simple and intuitive.

  • Push button to identify if the locker is in use or available, incorporates LED ring (multi-colored) for status indication.

  • The plug-and-play, reversible design enables rapid, on-site installation with minimal adjustment to existing infrastructure.

  • No wiring is required, delivering enhanced security and reliability at a reduced cost over the device’s lifetime.

  • Open and close lockers simply by holding an authorised credential against the lock. Integrated RFID, BLE, and NFC mobile credential technologies enable seamless access across multiple methods.

  • Physical smart RFID credential – SVN 

  • Digital key – NFC/Bluetooth LE 

  • Dual colour LED to indicate authorisation

  • Specific Locker opening modes:

  • Personal lockers

  • Free Assignment locker

  • Automatic openings

  • All communication between the carrier and the electronic lock is encrypted and secured.

  • Real-time system admin and card audit trailing capability via the Salto Virtual Network (SVN) and BLUEnet Wireless.

  • Easy maintenance: only occasional battery changes required.

  • Low battery status delivered via user keycards (SVN), or wirelessly (BLUEnet).

  • Battery replacement is easy without needing to dismount the locker door, and secure as it requires a special tool to access the batteries.

  • Full access control rights programmed via software.

  • Battery pack, electronic components and locking mechanism are all located inside the door, safe from potential vandalism or sabotage.

  • Manufactured using solid plastic (PC), halogen-free, V0 that ensures the long-lasting durability.

Technical Characteristics

  • Housing dimensions:109 x 109 x 33 mm.

  • Outside reader measurements: 22,2 Ø x 29 mm.

  • Deadbolt projection: 17,7 mm.

  • Door thickness: 10 mm up to 29 mm

  • Break-in resistance: DIN 4547-2, Class C

  • Ideal for retrofitting of existing mechanical Locker Locks

  • Suitable for wooden or steel door lockers.

  • Simple offline installation possible on many locker or cabinet door types.

  • Power source: three x AA batteries.

  • Reversible design can be fitted to lockers with left- or right-hand hinges for effortless installation.

  • External power in case of an empty battery.

  • Operating temperature: -25° C to 60° C (-13° F to 140° F).

  • Different condition of use including outdoor applications under specific circunstances.

Technology platforms

  • Salto Space

  • On-premise Network

Carriers

Key Card

  • NXP MIFARE®

Key Fob

  • NXP MIFARE®

Digital Key

  • Bluetooth LE

  • NFC - Near Field Communication

Wireless technologies

  • RFID

  • Bluetooth LE

  • NFC

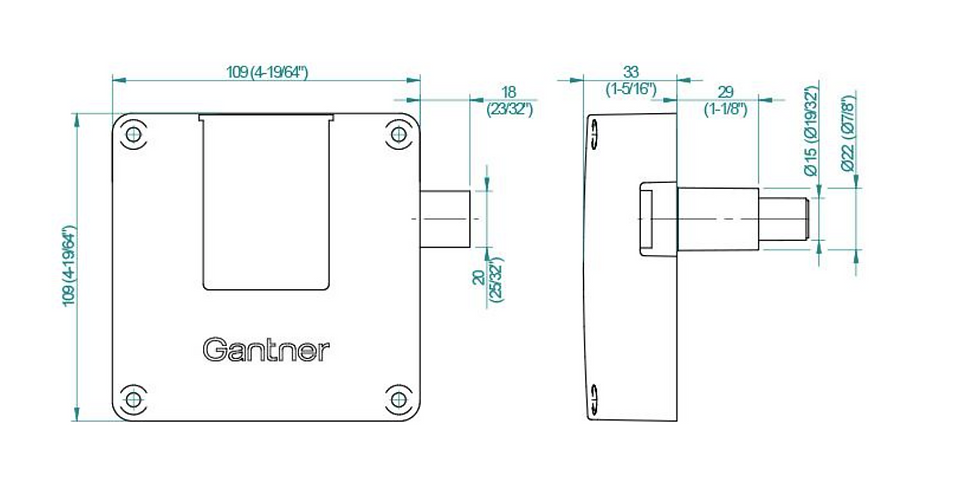

Technical Drawing

Screenshot 2025-08-08 122548.png

Certifications


Downloads

DATA SHEET
